Corrosion resistant anodized 5A06 aluminum plate
Time :2022-03-14

5A06 rust-proof aluminum, 5A06 oxidized aluminum alloy plate, fixtures, electrical fixtures, communication fields, also widely used in automatic mechanical parts, precision machining, mold manufacturing, electronics and precision instruments, SMT, conductors, cookware, instrument panels, PC Board solder carriers, etc.

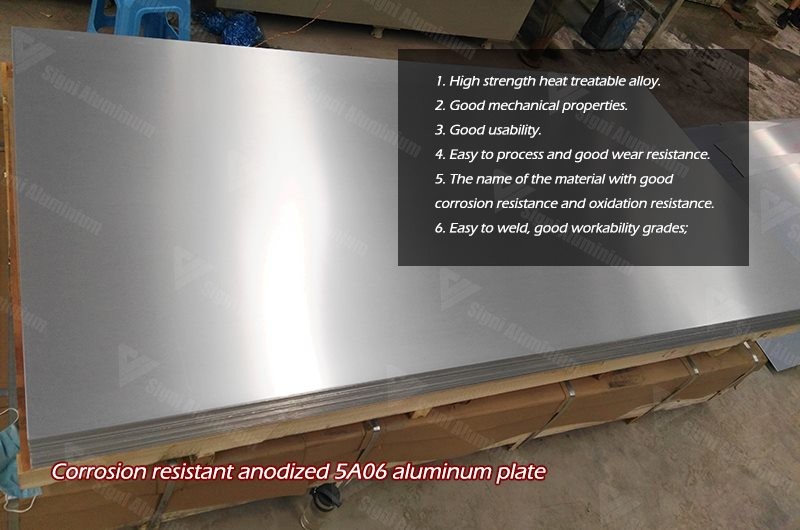

Corrosion resistant anodized 5A06 aluminum plate

  • 1. High strength heat treatable alloy.
  • 2. Good mechanical properties. 3. Good usability.
  • 4. Easy to process and good wear resistance.
  • 5. The name of the material with good corrosion resistance and oxidation resistance.
  • 6. Easy to weld, good workability grades:

Grade: Corrosion resistant anodized 5A06 aluminum plate

Characteristics and scope of application: It is Al-Mg series anti-rust aluminum, the alloy has high strength and corrosion stability, and the plasticity is good in the annealed and extruded state. It is acceptable. The strength of the welded joint of gas welding and spot welding is 90 to 95% of the strength of the matrix; the machinability is good.​​

5A06 alloy is usually used to manufacture welded pipes, welded oil tanks and other liquid containers, and other parts that require high process plasticity, good corrosion resistance, and moderate load; wire rods are used as electrodes and rivets, and rivets need to be anodized. In foreign countries, similar alloys (such as 5456) are used to make armor plates, high-strength structural parts

Corrosion resistant anodized 5A06 aluminum plate chemical composition:

Aluminum Al: Allowance Silicon Si: ≤0.40

Copper Cu: ≤0.10 Magnesium Mg: 5.8~6.8

Zinc Zn: ≤0.20 Manganese Mn: 0.50~0.8

Titanium Ti: 0.02~0.10 Beryllium Be: 0.0001~0.005

Iron Fe: 0.000~0.400 Note: single: ≤0.05; total: ≤0.10

Mechanical properties: Shear strength τ(MPa): ≥167
