anodized honeycomb aluminum panels are fireproof: aluminum panels are non-combustible materials. Corrosion resistance: The surface of the aluminum honeycomb panel is treated with epoxy fluorocarbon, which has strong corrosion resistance. Non-foaming and environmentally friendly: The anodized honeycomb aluminum panels is a pure aluminum product, which does not volatilize any gas harmful to the human body, is non-radioactive and can be completely recycled. It is a 100% environmentally friendly product. The aluminum honeycomb panel is easy to disassemble and assemble, and the panel will not be damaged. Because of its light weight and convenient transportation, it can be transported to different places and reused many times.

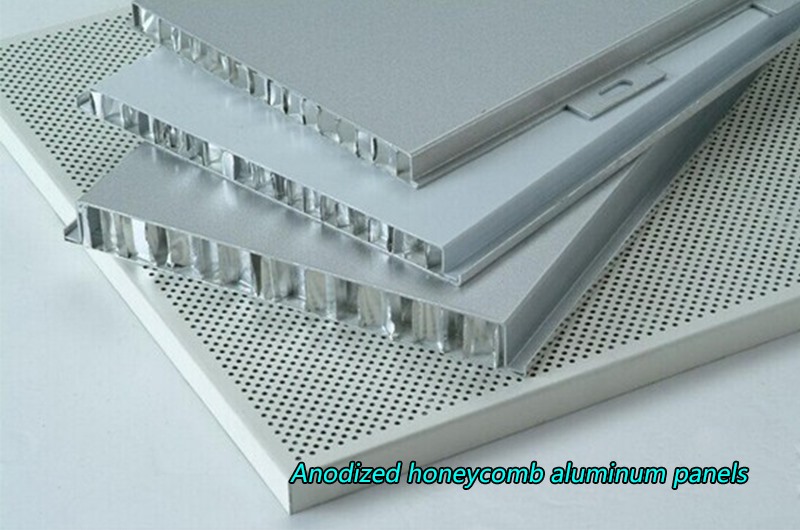

Anodized honeycomb aluminum panels

Anodized honeycomb aluminum panelsThe partition board can’t be compared with it.

• 1. Each anodized honeycomb aluminum panels must be sealed on the side by folding the decorative surface to avoid exposure of the honeycomb material. At the corners, the seams of the hem should be turned to the side of the plate to avoid the formation of cracks in the corners.All honeycomb aluminum panels should be pre-cut and assembled in the factory, including processing to the required size, sealed edges, sealed corners, necessary installation and frame installation, etc. It is not allowed to perform back slotting, bending, and riveting on site. Reinforce the secondary processing such as the sheet.
• 2. A 15-year warranty under outdoor use conditions must be provided. The warranty responsibility should include: for decorative surfaces: color changes that are not visible to the naked eye, and corrosion resistance without any penetration defects of surface treatment; for non-decorative surfaces: no Corrosion resistance of penetrating defects in any surface treatment.
• 3. Before being put into use, it will be required to provide test reports of salt spray test and ultraviolet radiation test issued by an accredited laboratory to prove its corrosion resistance and color stability.
• 4. anodized honeycomb aluminum panels thickness is 25mm, including panel thickness 1.0mm, alloy aluminum selection, using AA5005H44 or higher alloy material; back plate thickness of 1.0mm, using AA3003H24 or higher The required alloy material. The surface of the panel is treated with fluorocarbon paint (PVDF) (three-coating and three-baking), the fluorocarbon resin content is ≥70%, the thickness of the paint film is ≥32μm, the color is subject to the color plate provided by the owner, and it must be synchronized when processing the aluminum plate One-time roll coating is completed; the back plate is treated with polyester protective paint, and the thickness of the paint film is ≥8μm.
• 5. The bonding strength, weather resistance index, stability index, and water resistance index meet the relevant regulations, and a test report is provided. At the same time, the adhesive must have the performance of heating and curing to ensure the strength; the adhesive should not corrode with the aluminum plate and anodized honeycomb aluminum panels, and have compatibility; the adhesive must have a certain degree of toughness, and must not use fast-drying and brittle epoxy Resin glue or film; the adhesive must be stored, proportioned and used in an environment with constant temperature and humidity and purification conditions
