Anodized Aluminum Coil Strip for Lighting
Signi always focuses on bringing Anodized aluminum coil strip used in lighting technology field. In the past years, we've been accumulating a lot of experience in lighting.

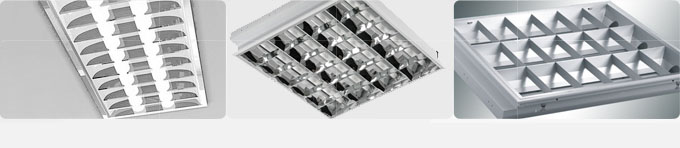

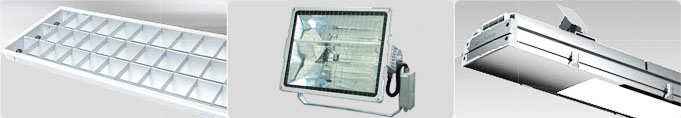

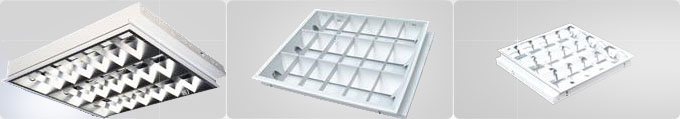

The main range of anodized aluminum coil strip used in the lighting industry includes the use of lamp reflector and lamp trim. Specifically:
• Outdoor lighting
• Grille light plate
• LED lighting
• Three anti-light fixtures
• Tunnel Light
And according to customers' different demands, the classic products used in lighting include: Brilliant Finish, Matt Finish,Lumenal Matt, Semi Specular, Erotex, Stucco Finish, etc.
The advantages of SigniAnodized aluminum coil strip:
• High reflectance, which even reaches 90% maximumly
• High finger print resistance and do not attract dust
• Low proportion and easy for further fabrication
• Anti scratch with high surface hardness
• Process without any pretreatment process
Due to its high quality, SigniAnodized aluminum coil strip in lighting industry always occupies the market leading position, and is widely used by customers from home and abroad.
Signi always focuses on bringing Anodized aluminum coil strip used in lighting technology field. In the past years, we've been accumulating a lot of experience in lighting.
The main range of anodized aluminum coil strip used in the lighting industry includes the use of lamp reflector and lamp trim. Specifically:
• Outdoor lighting
• Grille light plate
• LED lighting
• Three anti-light fixtures
• Tunnel Light
And according to customers' different demands, the classic products used in lighting include: Brilliant Finish, Matt Finish,Lumenal Matt, Semi Specular, Erotex, Stucco Finish, etc.
The advantages of SigniAnodized aluminum coil strip:
• High reflectance, which even reaches 90% maximumly
• High finger print resistance and do not attract dust
• Low proportion and easy for further fabrication
• Anti scratch with high surface hardness
• Process without any pretreatment process
Due to its high quality, SigniAnodized aluminum coil strip in lighting industry always occupies the market leading position, and is widely used by customers from home and abroad.
| Specification-Anodized aluminum coil strip for lighting | |||||
| Alloy | Temper |
Thickness (mm) |
Thickness Tolerance | Width(mm) | Width Tolerance |
|
1050, 1060, 1070, 1085 |
O, H14, H16,H18 | 0.1~2.5 |
0.1-0.3mm:±0.02mm 0.31-0.5mm:±0.03mm 0.51-0.8mm:±0.04mm 0.81-1.2mm:±0.06mm ＞1.2mm:±0.1mm |
50~1520 | ＜1250mm ：+3/-0mm ≥1250mm ：+4/-0mm |
| Tensile strength | Yield strength | Elongation | Total reflectivity |
Minimum Total Reflectance % |
Diffuse Reflectance % |
| Min 125Mpa | Min 85Mpa | ≥1% | 78%～96% | It is different according to different products | |
|
Application: 1.Outdoor lighting 2.Grille light plate 3.LED lighting 4.Three anti-light fixtures 5.Tunnel Light ,etc Note: ① All materials listed above can be delivered in various sizes and shapes according to customer requirements. ② All products are supplied with a peelable self-adhesive polyethylene protection tape, which guards against scratching. |
|||||
